Trusted Swing Arm & Folding Gate Automation in Klang Valley

Automate Your Folding or Swing Gate

Folding gates and swing-type entrances are common across Malaysian homes, particularly terrace houses and bungalows. Our swing arm autogate system transforms these manual gates into convenient, automated entry points.

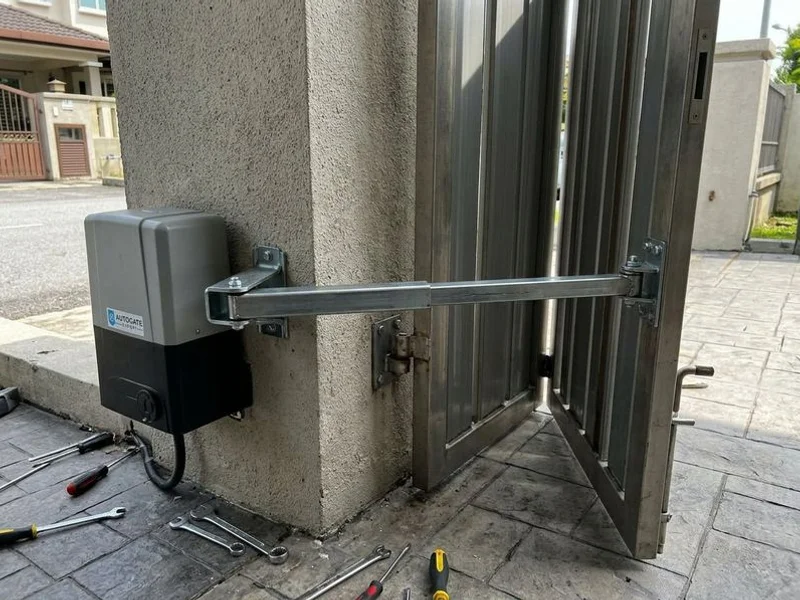

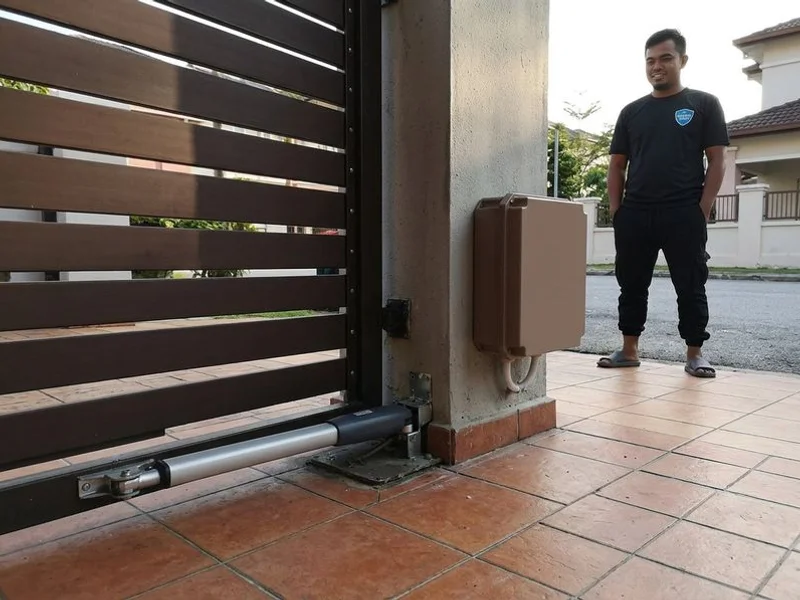

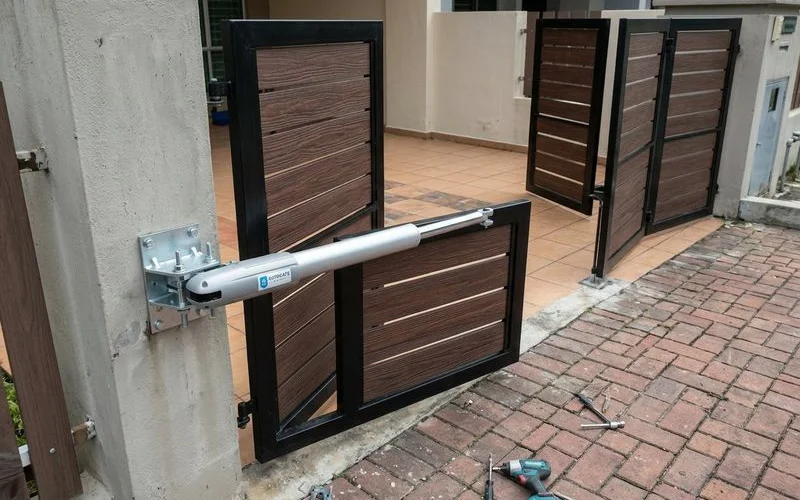

Unlike sliding gate motors, swing arm systems use electro-mechanical arms that mount directly to your gate pillars and gate leaves. Each arm provides dedicated push-pull force to open and close its assigned gate segment — no floor tracks, no rollers, no rail maintenance. For a complete walkthrough of what to expect, read our swing arm autogate installation guide.

How Swing Arm Systems Work

The electro-mechanical arm motor uses a screw shaft mechanism with carbon steel coupling for reliable torque delivery. When activated by remote control, the arms extend to push the gate open and retract to pull it closed. The system includes adjustable speed and force settings to accommodate different gate weights.

Our Packages

Basic Package — From RM 1,300

Ideal for standard folding gates up to 500kg total weight:

• 2 swing arms (one per gate leaf)
• 1 controller box
• 3 remote controls
• Professional bracket welding
• 1-year warranty

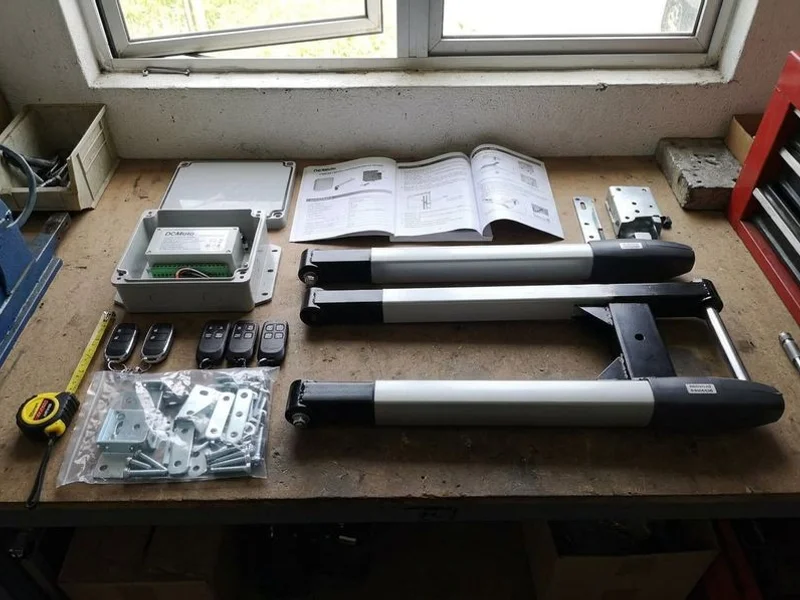

Premium DC Motor Package — From RM 1,900

For homeowners who want advanced features:

• DCMoto GFW 925W-HR motors
• Wireless keypad for keyless entry
• 3 remote controls
• AL Lock for enhanced gate security
• Battery backup compatible (optional add-on)
• Hybrid manual/auto operation
• 1-year warranty

The DC motor package is popular with families who value the battery backup feature — your gate continues to operate during power outages, a common occurrence during Malaysia’s monsoon season.

Installation Process

Step 1: Gate & Pillar Assessment

Our technician visits your property to measure each gate leaf, assess hinge condition, check pillar structural integrity, and determine mounting positions. Heavy or oversized gates may need reinforced brackets or additional arms.

Step 2: Professional Installation

On installation day, our team:

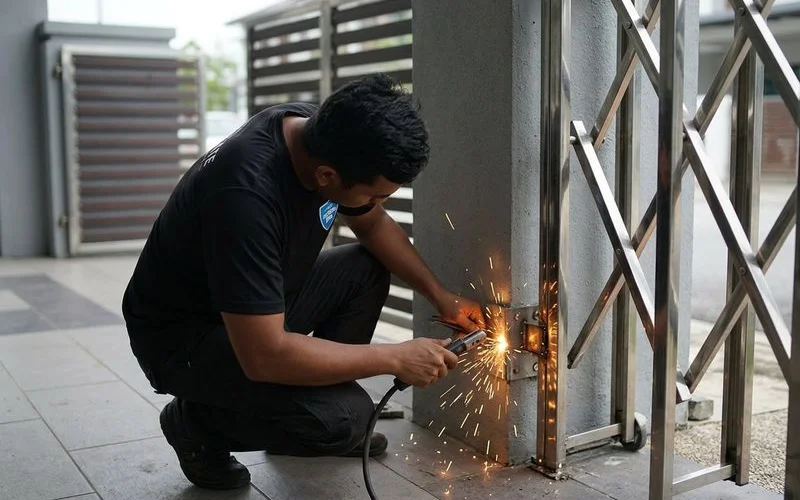

1. Welds heavy-duty brackets to pillars and gate leaves
2. Mounts the swing arms at calculated positions

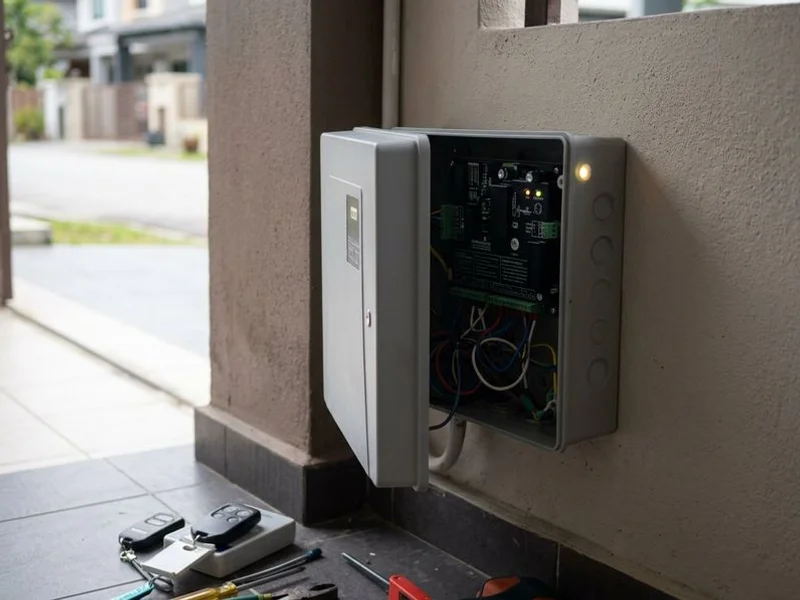

3. Installs the controller box and wiring
4. Connects and tests each arm’s range of motion
5. Adjusts opening angle, speed, and auto-close timer

Step 3: Testing & Training

We run multiple open-close cycles to verify balanced operation, then programme your remotes and walk you through:

• Daily remote operation
• Manual release key usage
• Force adjustment (for seasonal changes)
• Wireless keypad programming (DC package)

Frequently Asked Questions

Can I upgrade from Basic to DC later? Yes, upgrading from an AC to DC motor system is straightforward since the mounting brackets are compatible. You would only need to replace the motor units and controller.

What if my gate is heavier than 500kg? We offer industrial-grade swing arm solutions for heavier gates. Contact us for a custom quotation based on your specific gate weight and dimensions.

Service Areas

We install swing arm autogates across Shah Alam, Petaling Jaya, Subang Jaya, Puchong, Kuala Lumpur, Klang, Damansara, and all surrounding areas. Get a free quote today.
