What to Do When Your Autogate Gets Struck by Lightning in Malaysia

We often get asked what to do when your autogate gets struck by lightning in Malaysia as a professional service team repairing residential systems.

According to 2026 meteorological data, the Klang Valley remains the lightning capital of the country with over 240 thunderstorm days annually. This immense volume of bad weather puts every electronic system outside your property at severe risk.

Our daily repair logs show that lightning-related failures account for roughly 30% of all service calls during the monsoon months from October to March. You need to know the right steps to take immediately after a storm passes. The following guide breaks down exactly how these power surges damage your components and shares the precise methods to protect your investment.

How Lightning Damages Your Autogate

We frequently see homeowners surprised that their gate broke even when the lightning missed their house entirely. A direct hit is actually quite rare compared to indirect power surges. The Suruhanjaya Tenaga (Energy Commission) guidelines highlight how electrical overvoltage can travel through standard power lines from strikes occurring far away.

Our technicians classify these damaging events into three distinct categories to help diagnose the exact point of failure.

Direct Strike

A direct lightning bolt hitting the metal gate or brick pillar is the most destructive scenario. The massive electrical surge travels through the metal gate frame straight into the motor and wiring.

We usually find that this completely destroys the control panel and severely damages the motor windings. Heavy-duty systems like the DNOR Turbo 880 are powerful, but no consumer motor can survive a direct hit. Complete replacement of the electronics is almost always necessary in these extreme cases.

Induced Surge

Our repair data shows that induced surges are the most common cause of autogate damage in Malaysia. Lightning strikes a nearby electrical sub-station or telephone pole. The resulting electromagnetic pulse creates a massive voltage spike in your residential electrical wiring.

We constantly replace mainboards that were fried simply because the gate power supply cable carried this spike directly into the system. This excess voltage bypasses standard circuit breakers before they can trip. Modern DC motor control boards are highly sensitive to these sudden voltage changes.

Ground Surge

We also regularly encounter ground surges after heavy rainstorms. Lightning striking the ground near your property spreads electrical current through the damp earth. The current then enters the system through the metal track embedded in the driveway or via an inadequate earth grounding connection.

We have to replace receiver modules frequently because they sit at the end of this unintended electrical path. Moist soil during the Malaysian monsoon season conducts this stray electricity incredibly well. Proper earthing is the only way to divert this ground energy away from the sensitive electronics.

Components Most Affected by Lightning

We track our inventory closely to see exactly which parts fail most often during thunderstorm season. Microprocessors and delicate circuitry bear the brunt of any electrical overload. The repair costs vary depending on the specific brand and model installed at your home.

We stock replacement parts for popular brands like Casa Asia, OAE, and DEA to handle these common failures quickly.

Control Panel / Control Board

The main control board acts as the brain of your system and remains the most vulnerable component. The microprocessor, capacitors, and transistors on the board cannot withstand voltage spikes beyond their rated capacity.

We frequently open control boxes to find swollen capacitors and completely melted circuit tracks. A severe surge can instantly fry the entire board within milliseconds. Replacement parts typically cost between RM 250 and RM 500 depending on the model.

Receiver Module

Our technicians always check the remote control receiver because its antenna acts like a tiny lightning rod. The thin circuitry inside is extremely sensitive to static electricity and voltage spikes. You might notice the gate works with a wall switch but fails to respond to your remote.

We usually replace these modules for a cost ranging from RM 100 to RM 200.

Transformer

The step-down transformer converts 240V mains electricity to the low voltage used by the control board. A sudden surge will easily burn out the primary or secondary copper windings inside.

We can test this component quickly with a multimeter to confirm if it has failed. Fitting a new transformer generally costs between RM 80 and RM 150. Older AC motors used in sliding autogate installation setups rely heavily on these transformers to function properly.

Motor Windings

We rarely see motor damage unless the lightning strike was exceptionally close to the property. In severe cases, the surge reaches the motor and burns out the internal winding insulation. This failure causes a permanent short circuit within the motor housing.

We must replace the entire motor unit when this happens. A new motor installation can set you back anywhere from RM 800 to RM 1,500.

Backup Battery

The battery charger circuit often sustains hidden damage during a storm. This failure leads to overcharging or a complete inability to charge the 12V 7aH backup battery.

We often discover this secondary issue weeks later when a scheduled power outage occurs. Replacing a damaged backup battery costs approximately RM 80 to RM 150.

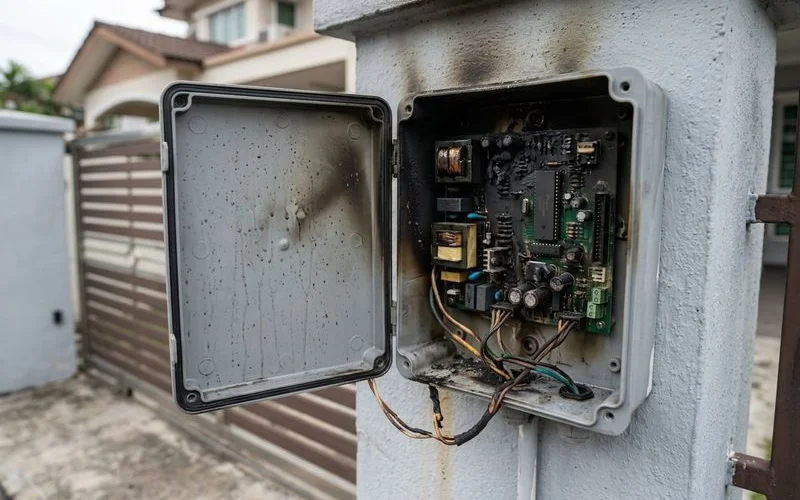

Lightning damaged autogate control panel showing burnt components and circuit board damage from power surge

Immediate Steps After a Lightning Strike

We constantly remind homeowners that taking the wrong action after a power surge can cause further damage to the system. Following proper safety guidelines prevents accidental electrocution. Executing a specific safety protocol is vital before attempting any quick fixes.

Step 1: Wait and Do Not Touch the Gate

We warn clients that there may be a residual electrical charge in the system or damaged wiring that poses an electrocution risk. A wet metal gate is an excellent conductor of electricity. Waiting at least 30 minutes after the storm passes is mandatory before inspecting the area.

Step 2: Test the Basic Functions

We recommend trying to operate the gate with your standard remote control first. If there is no response, attempt to use the indoor wall switch if you have one installed. The main control panel is likely damaged if neither method triggers a response.

Step 3: Check Your Home Distribution Board

We suggest looking at your home main distribution board to see if the Miniature Circuit Breaker (MCB) has tripped. The system detected a massive overload if the breaker for the autogate power supply is in the down position. Flipping the switch back on could cause a dangerous short circuit if the underground wiring is melted.

We strictly warn against simply resetting the breaker to see if it works. This simple mistake often destroys parts that survived the initial lightning strike. Visual inspection of the internal components is the next logical step.

Step 4: Visually Inspect the Control Box

We advise safely opening the plastic control box cover to look for obvious signs of failure. Key indicators of severe electrical damage include:

Black burn marks scorching the green circuit board
A strong smell of burnt electronics and melting plastic
Swollen or leaking cylindrical capacitors on the board
Melted wires at the main terminal connection points

Clear photos of these issues will help your technician prepare the right replacement parts.

Step 5: Call a Professional Service Provider

We plead with owners not to attempt to repair severe lightning damage themselves using basic tools. The electrical damage almost always extends far beyond what is visually obvious to the naked eye. Reconnecting a partially damaged board can send incorrect voltages directly to the swing arm motors.

We frequently see DIY attempts cause secondary damage to expensive motor components. Using mismatched spare parts will also void any remaining warranty on your system. Getting your security gate running again requires a systematic approach to isolate the broken parts.

The Professional Repair Process

We follow a strict diagnostic checklist when responding to a lightning damage call in the Klang Valley. A proper standard operating procedure ensures you only pay for what actually needs replacing. The comprehensive repair process includes:

Full system diagnosis: Testing each component individually with a multimeter to identify all damaged parts.
Damage assessment: Providing a transparent list of all components needing replacement alongside the exact costs.
Targeted replacement: Changing only the damaged electronics, as there is no need to replace the entire system if the motor is unaffected.
Surge protection upgrade: Installing dedicated lightning protection devices during the repair session to prevent future issues.

We can usually complete a full repair in under two hours because our service vans carry parts for major brands. Preventing damage is always more cost-effective than replacing burnt components every monsoon season. The Malaysian Energy Commission advocates for proper installation of surge protection devices to mitigate these exact risks.

How to Protect Your Autogate from Lightning

We install specific protective measures that significantly increase the survival rate of your electronics.

Install a Surge Protection Device (SPD)

An SPD installed directly on the incoming power supply line absorbs massive voltage spikes. This device clamps the excess energy and sends it safely into the ground before it reaches the fragile control board.

We consider this the single most effective protection measure any homeowner can implement. A quality Type 2 SPD from brands like Schneider or AUTOGATE MAXSTONE costs between RM 80 and RM 200 fully installed. This small investment effectively protects against 80 to 90 percent of induced power surges.

Ensure Proper Earthing and Grounding

Our inspections frequently reveal that many older gates lack a dedicated earth ground connection. The ground copper rod must be driven at least 1.5 metres into moist soil to be effective. It must connect to the control box using a thick, minimum 4mm² copper cable.

We upgrade these grounding lines to provide a safe, low-resistance path for stray lightning currents.

Unplug the System During Storms

Disconnecting the power supply remains the simplest and entirely free method of protection. Unplugging the main socket entirely eliminates the physical path for induced surges travelling through the power line.

We remind our customers that many modern DC motor systems will happily continue operating on their internal backup battery while unplugged. You simply plug the system back in once the heavy rain and thunder have passed. This manual approach requires diligence but guarantees total isolation from the main electrical grid.

Add Varistor Protection

We often solder Metal Oxide Varistors across the transformer input for older AC sliding gate setups. A varistor acts as a voltage clamp that absorbs sudden spikes to keep them at safe levels. Most modern DC control boards include basic varistor protection straight from the factory.

We always verify if these built-in varistors have degraded over time, as they sacrifice themselves to save the board.

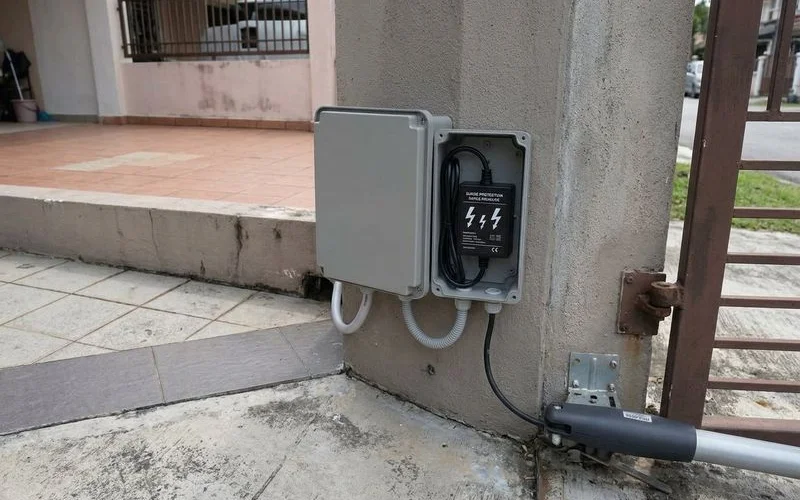

Surge protector device installed on autogate power supply line protecting control panel from lightning damage

Insurance Considerations in Malaysia

Many homeowners are completely unaware that their standard house insurance might cover this exact type of damage. Policies like the Allianz Smart Home Cover specifically include protection for gates and fences damaged by lightning strikes.

We regularly help clients submit these claims by providing the necessary technical documentation. You must check your specific policy wording for several crucial details before filing a claim. Key factors to review include:

Electrical surge coverage: Checking if the policy explicitly covers secondary power surges.
Claim limit: Verifying any strict per-item financial limits for electronic gates.
Documentation required: Keeping your detailed repair invoices and clear photos.
Excess fees: Calculating if the mandatory deduction is higher than a minor RM 250 repair.

We issue detailed service reports with photographic evidence that insurance adjusters require to approve your payout. Taking proactive steps today will save you significant stress and money during the next major thunderstorm. The financial comparison between basic protection and complete replacement is striking.

Prevention Is Cheaper Than Repair

We compiled this cost-benefit analysis based on our 2025 repair data to highlight the value of prevention.

Protection Measure	Estimated Cost	Potential Repair Cost Saved
Dedicated surge protector	RM 80 - RM 200	RM 250 - RM 500 (Main control board)
Proper deep grounding	RM 100 - RM 200	RM 250 - RM 1,500 (Multiple fried components)
Unplugging during storms	Free	All potential electrical damage

A simple RM 150 surge protector can easily prevent a RM 500 control board replacement. Over the ten-year life of your security gate, this tiny upgrade represents one of the best investments you can make for your property.
