Sliding vs Swing Autogate: Which Is Right for Your Malaysian Home?

When clients ask us about the great debate of Sliding vs Swing Autogate: Which Is Right for Your Malaysian Home?, we always start by looking at their daily routine. This choice often comes down to balancing tight driveway space against long-term maintenance needs.

Our team has evaluated countless installations across the Klang Valley to see what actually lasts through heavy monsoon rains. These regular downpours can quickly ruin the wrong motor.

Let’s look at the data, what it is actually telling us, and explore a few practical ways to decide.

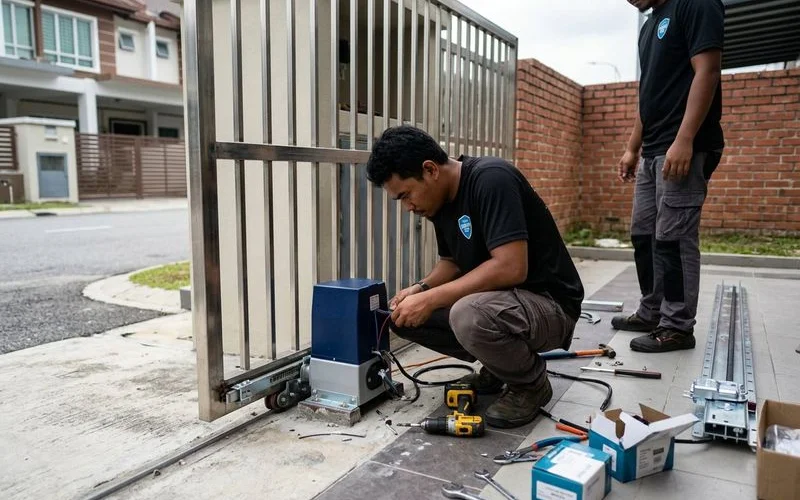

How Sliding Autogates Work

A sliding autogate moves horizontally along a track or trackless rail to open and close. The motor drives a rack-and-pinion mechanism that pushes the gate along the bottom rail.

We often install these systems as part of a professional sliding autogate installation in terrace houses or properties with limited front space. Heavy-duty AC sliding motors, like the Tronica 1500, can easily move massive gates weighing up to 1500kg.

Choosing the right motor size prevents the system from burning out prematurely.

Advantages of Sliding Autogates

• Space-efficient logic: The gate slides parallel to the fence, keeping your driveway completely clear.
• Massive weight capacity: Commercial-grade AC motors can easily support industrial gates up to 1500kg.
• Slope adaptability: This system works perfectly on steep or uneven driveways where traditional panels would drag.
• Maximum parking space: Removing the opening arc means you can park vehicles right up to the entrance.

Disadvantages of Sliding Autogates

• Side clearance needs: You must have sufficient wall space beside the opening to hide the open panels.
• Monsoon track maintenance: Heavy Malaysian rains wash dirt and small stones into floor tracks, which frequently derails the rollers.
• Higher initial investment: Purchasing the rack gear, floor track, and motor makes this setup costlier than arm alternatives.
• Roller wear and tear: Constant friction means the bottom wheels will eventually need replacement to prevent motor strain.

How Swing Arm Autogates Work

A swing arm setup uses electromechanical arms to push the panels open, mirroring a manual opening action. The motor arms mount directly onto your gate pillars and connect securely to the leaves.

We recommend a swing arm autogate installation for semi-detached and bungalow homes across Malaysia. Popular local models, such as the FBM 929 or D’nor 712, provide exceptional reliability for these wider entrances.

These proven systems keep your daily operations running smoothly.

Advantages of Swing Arm Autogates

• Budget-friendly pricing: Basic motor setups typically start from just RM 1,200, making them highly accessible.
• Trackless installation: The arms attach straight to your pillars, eliminating the need to hack up your driveway.
• Simplified maintenance: Having fewer moving parts translates to fewer emergency repair calls.
• Elegant aesthetics: These traditional designs offer a premium, classic look for large properties.

Disadvantages of Swing Arm Autogates

• Driveway clearance rules: The panels must swing fully inward or outward, requiring a large empty arc.
• Strict weight limits: Standard residential motors only support a maximum of 300kg to 400kg per leaf.
• Thunderstorm vulnerability: Strong Malaysian winds can catch wide panels and snap the internal ball screws of the arm.
• Flat surface requirements: These units cannot open properly over steep slopes or badly uneven ground.

Side-by-Side Comparison

Feature	Sliding Autogate	Swing Arm Autogate
Space Required	Side wall clearance	Driveway arc clearance
Max Gate Weight	Up to 1500kg (AC models)	Up to 400kg per leaf
Starting Price	From RM 1,300	From RM 1,200
Installation Time	3-5 hours	2-4 hours
Maintenance Focus	Track debris cleaning	Arm bracket lubrication
Best Property Type	Terrace houses, tight spots	Semi-D, large bungalows
Slope Adaptability	Excellent	Very limited
Power Failure Backup	Available (DC motors)	Available (DC motors)

Which Type Suits Your Property?

Picking the right automation system requires a careful look at your specific driveway layout. You need to consider how your family uses the entrance daily.

Our team always advises matching the motor type to your specific architectural constraints. Getting this right prevents costly modifications down the road.

Choose a Sliding Unit If:

• You own a terrace house in a congested housing estate.
• Your custom iron gate weighs well over 400kg.
• Your family frequently parks vehicles directly against the entrance.
• Your driveway features a steep gradient or uneven tiling.
• You require maximum security without panels blocking the public road.

Choose a Swing Arm Unit If:

• You own a spacious bungalow with a wide, deep driveway.
• Your design features a classic double-leaf aesthetic.
• Your renovation budget is strict and you want an affordable motor.
• Your entrance ground is completely flat and free of obstacles.
• You want to avoid cleaning mud and leaves out of floor tracks.

Cost Comparison in Malaysia

Budgeting for your upgrade requires understanding current market rates in the Klang Valley. These figures help you spot fairly priced quotes from contractors.

We monitor these prices closely to ensure you get the best deals. The table below highlights the estimated costs for just the motor systems as of early 2026.

Package Type	Sliding Motor Setup	Swing Arm Setup
Basic AC Motor	RM 1,300 to RM 1,800	RM 1,200 to RM 1,500
DC Motor (With Battery)	RM 1,900 to RM 2,800	RM 1,600 to RM 2,200
Premium Heavy-Duty	RM 2,500 to RM 3,500+	RM 2,000 to RM 3,000+

Keep in mind that these prices cover the automation hardware and basic labour. Custom gate fabrication, pulling new electrical wiring, and strengthening pillars will add to your final bill.

What About Trackless Sliding Gates?

Trackless sliding gates represent a fantastic modern upgrade that completely eliminates the problematic floor track. The entire panel hangs securely from an overhead rail or operates via a smart cantilever system.

We highly recommend premium aluminium trackless options from brands like Delux for long-term reliability. These rust-free setups easily survive Malaysia’s tropical humidity while solving the tedious track maintenance issue entirely.

They do cost significantly more upfront and demand reinforced concrete pillars to safely suspend the heavy panels.

Sliding vs Swing Autogate: Which Is Right for Your Malaysian Home?

For most Malaysian terrace houses, sliding autogates stand out as the superior choice due to severe space constraints. If you manage a larger property with ample driveway depth, a heavy-duty swing arm system provides unbeatable value.

Our technicians always suggest taking accurate measurements before making your final purchase. A quick professional inspection reveals hidden slope issues or weak pillars that might ruin a new motor.

Protecting your investment starts with choosing the right hardware for your exact environment.
