Folding Gate vs Trackless Autogate: Pros and Cons for Malaysian Homeowners

We constantly evaluate the Folding Gate vs Trackless Autogate: Pros and Cons for Malaysian Homeowners as a professional service team operating throughout the Klang Valley.

The ongoing debate over entrance automation is something you likely face right now. A quick decision often leads to expensive repairs down the road.

Our team wants to break down these structural differences clearly to help you avoid those costly mistakes. The facts clearly show which system performs best under local weather conditions.

Let us look at the data and outline a practical plan for your property.

What Is a Folding Gate?

We see traditional folding gates, also called bi-fold gates, on almost every street in Malaysia. These systems consist of multiple panels that fold accordion-style when opened. When motorised, a folding gate system uses an overhead track and a motor to fold and unfold the panels automatically.

Our experience shows that models from popular local brands like D’nor and OAE dominate the market here. The D’nor 712 and 212 series are particularly common in older terrace houses. These wall-mounted arm motors, commonly used in swing arm autogate installation projects, connect directly to the hinged panels to pull them open.

Advantages of Folding Gates

We always highlight the cost efficiency of these systems for standard homes. A standard 20-foot terrace house entrance is the perfect candidate for this design. The installation process is straightforward and fast.

• Space efficient: Folds compactly, requiring minimal side clearance.
• Affordable automation: Motorising an existing folding gate is highly cost-effective. You can install a reliable D’nor Turbo 880 motor system for roughly RM 1,800 to RM 2,300.
• Familiar design: Common in Malaysian housing estates, blending seamlessly with neighbouring properties.
• Good ventilation: Open-panel designs allow continuous airflow through the gate.
• High weight tolerance: Modern arm motors handle substantial loads, with heavy-duty systems supporting up to 350kg per wing.

Disadvantages of Folding Gates

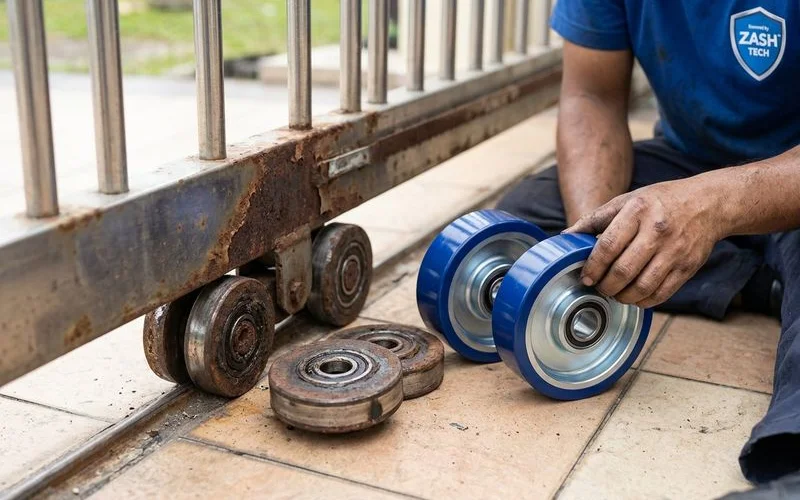

Our technicians frequently repair these systems after heavy monsoon rains. The high humidity and constant exposure to water cause hinge pins and bearings to rust rapidly. Replacing worn rusted bearings usually costs around RM 400 per session.

We constantly warn clients about the dangers of soil settlement in new Klang Valley developments. The driveway often sinks slightly compared to the piled house pillars. This differential settlement bends the floor track and derails the entire mechanism.

• Many moving parts: Hinges, rollers, and pivot points create multiple failure points.
• Higher maintenance: Regular lubrication of all hinges and rollers is essential to prevent jamming.
• Noise: Folding gates tend to be noisier due to panel-to-panel contact.
• Wear and tear: Hinge pins and bushings wear out over time, causing rattling and misalignment.
• Vulnerable to soil shifts: A sinking car porch will warp the ground track permanently.

What Is a Trackless Autogate?

We install trackless autogates, also called cantilever gates, for clients seeking a modern aesthetic. Unlike a standard sliding autogate installation, this system slides horizontally without any floor-mounted track. It uses an upper guide rail or a cantilever beam attached securely to the pillar.

Our installers utilize heavy-duty carriage rollers concealed within the bottom beam to achieve a floating effect. This engineering eliminates the need for any ground contact across the driveway opening. Property developers increasingly specify these cantilever systems for high-end residential projects.

Advantages of Trackless Systems

We highly recommend these systems for properties located in flood-prone zones. Flash floods frequently submerge standard tracks in areas like Shah Alam Section 13 and Bukit Raja. A trackless design keeps the vital motor components and moving parts elevated safely above rising water levels.

• No floor track: Nothing to trip over, no debris collection, and zero track maintenance required.
• Modern aesthetics: Clean lines and a contemporary appearance that enhances your property value.
• Quieter operation: Without track rollers grinding against the ground, the system runs silently.
• Weather resistant: No track to flood during heavy rain, which is a massive advantage during the Malaysian monsoon season.
• Immune to soil settlement: The floating design remains completely unaffected if the driveway soil sinks or shifts.

Disadvantages of Trackless Systems

Our primary warning to clients revolves around the initial financial investment. A premium trackless setup easily exceeds RM 3,500. You also need to verify that your existing pillars can support the cantilever weight safely.

• Higher cost: Trackless systems typically cost 30% to 50% more than track-based or folding alternatives.
• Stronger pillars required: The main pillar bears the entire dynamic load since there is no track distributing the weight.
• Heavier gate limitations: Standard cantilever systems struggle with very heavy gates exceeding 600kg.
• Specialised repair: Fewer technicians possess the experience required for trackless installations and complex alignments.

Side-by-Side Comparison of Folding Gate vs Trackless Autogate: Pros and Cons for Malaysian Homeowners

We always advise clients to review these specifications carefully before signing a contract. The cheapest upfront option rarely provides the best value over a ten-year period. A direct comparison reveals the structural differences clearly.

Feature	Folding Gate	Trackless Autogate
Starting Price (with motor)	RM 1,800 to RM 2,800	RM 3,500 to RM 4,500+
Floor Track	Yes (overhead and ground track)	No (cantilever beam)
Noise Level	Moderate to loud	Very quiet
Moving Parts	Many (hinges, rollers, pivots)	Few (motor, internal carriage rollers)
Maintenance Frequency	Monthly lubrication	Quarterly visual check
Gate Weight Limit	Up to 400kg per wing	Up to 600kg total
Aesthetics	Traditional or industrial	Modern and clean
Vulnerability to Soil Settlement	High (track bends if ground sinks)	Zero (gate floats above ground)
Flood Resistance	Poor (motor and track submerge easily)	Excellent (components elevated)

Which One Should You Choose?

Our team evaluates several site-specific factors before making a final recommendation. You must consider your daily routine and budget constraints. The physical layout of your entrance dictates the most viable option.

Choose a Folding Gate If:

• Your budget is limited and you already possess a folding gate in good structural condition.
• Your property entrance is very narrow, typically under 3 metres or roughly 10 feet.
• You plan to sell the property soon and prefer not to invest heavily in upgrades.
• Neighbouring houses all feature folding gates and you want a consistent streetscape.
• You need the gate to fold into a very compact space without sliding along the inside fence.

Choose Trackless If:

• You are building a new gate or replacing an old unit entirely.
• You want a premium, modern aesthetic for your home facade.
• Low maintenance is a top priority for your busy lifestyle.
• Your neighbourhood experiences heavy rainfall or seasonal flash flooding.
• You want a quieter system that will not disturb your family or neighbours late at night.
• Your driveway surface is uneven or located in an area prone to soil settlement.

Real Cost of Ownership

We tracked repair invoices across hundreds of Klang Valley homes to find the true financial impact. While folding gates feature a lower upfront price tag, the ongoing maintenance fees quickly add up. The chart below illustrates the accumulated expenses over five years.

Cost Factor	Folding Gate (5 years)	Trackless (5 years)
Installation	RM 2,200	RM 3,500
Annual Maintenance	RM 300 × 5 = RM 1,500	RM 150 × 5 = RM 750
Hinge and Roller Replacement	RM 400 (at least once)	RM 0
Track Repair and Realignment	RM 200	RM 0
5-Year Total	RM 4,300	RM 4,250

Our calculations show that the financial gap closes completely by the fifth year. Beyond this five-year mark, the cantilever system becomes significantly cheaper to operate and maintain. You save money by eliminating track repairs and roller replacements entirely.

The Upgrade Path

We see many property owners start with a motorised folding gate and later upgrade to a trackless system. This phased approach works well if you manage the transition correctly. If you are considering this upgrade path, here is the most efficient strategy.

1. Motorise your existing folding gate now if it remains structurally sound. This action buys you time at a much lower cost.
2. Plan for pillar reinforcement during any future wall renovations. A cantilever system requires steel rebars inside the pillar to handle the heavy dynamic load.
3. Ensure sufficient side clearance along your fence line to accommodate the horizontal sliding motion.
4. Budget for the full replacement (gate, motor, and pillars) when you are ready. Partial upgrades usually compromise the final result and lead to severe structural instability.

Talk to Us About Your Options

We can assess your exact property layout and recommend the most cost-effective solution.

Understanding the Folding Gate vs Trackless Autogate: Pros and Cons for Malaysian Homeowners is just the first step.

Upgrading your entrance security requires professional insight to ensure long-term reliability.

Our specialists are ready to help you plan the perfect installation.

Whether you are automating an existing system or transitioning to a modern floating design, getting the right technical advice is crucial.

WhatsApp us at 018-298 9389 for a free consultation and quotation today.
