You know how frustrating it is when a gate jams during a torrential Klang Valley downpour. A failed motor quickly turns a simple convenience into a severe security headache.
Our technicians respond to these exact emergencies across Malaysia almost every week. The root cause frequently traces back to the fundamental difference between an AC and a DC motor.
The data clearly highlights a specific winner for long-term reliability.
We are going to analyze the core topic: DC Motor vs AC Motor for Autogates: Which Lasts Longer? Let’s break down the mechanical differences, compare the true operational costs, and explore the exact models that perform best.
Understanding AC Motors
Our team has replaced hundreds of standard AC (alternating current) motors over the past decade. These traditional units run directly off the 240V mains power provided by Tenaga Nasional Berhad (TNB).
Many commercial properties still utilize heavy-duty AC sliding motors like the older Casa Asia SG-350 models. They offer massive pulling power for extreme weights but completely lack modern electronic refinement.
How AC Motors Work
The setup relies on a basic step-down transformer connected straight to your home’s electrical distribution board. A simple electronic control board processes the open or close commands broadcasted from your 330MHz or 433MHz remote.
Our installers note that the mechanical operation is entirely binary. The gate receives full electrical power instantly, moves until it hits a physical limit switch, and then abruptly stops.
AC Motor Characteristics
- Fixed speed operation: The motor runs at a single velocity without any gradual acceleration.
- Zero battery backup: A TNB power outage means the gate remains completely immobilized.
- Higher noise levels: The sudden engagement of full torque generates noticeable mechanical clanking.
- Lower initial cost: Basic internal components keep the upfront purchase price highly affordable.
- High capacity: Heavy commercial gates often require the raw, unregulated power these units provide.
Understanding DC Motors
DC (direct current) motors represent the current standard for residential autogate technology across Malaysia. These advanced systems utilize an intelligent controller to convert the standard 240V mains supply down to a much safer 24V DC current.
Our preferred models for swing arm autogate installation projects regularly incorporate three-speed technology to manage the gate’s movement with pinpoint precision. This electronic regulation unlocks advanced safety features like soft starting and soft stopping.

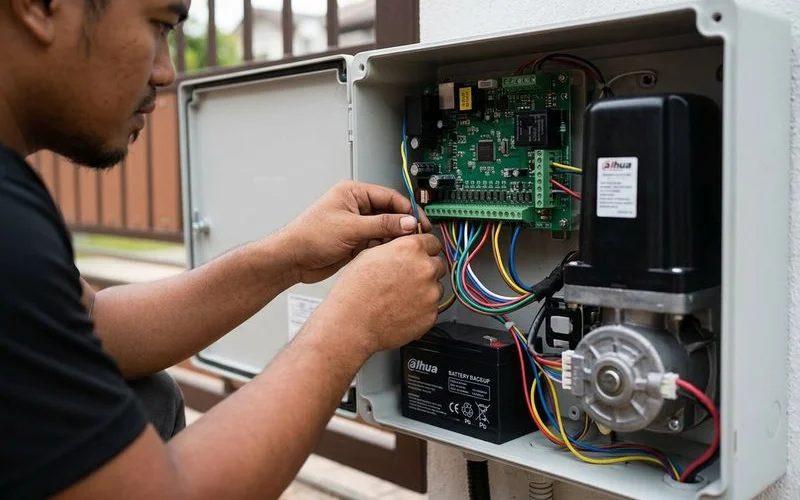

How DC Motors Work
Mains power continuously charges an internal 12V 7Ah sealed lead-acid battery through a dedicated charging circuit. The motor itself draws operational power directly from this stored direct current supply.
We frequently explain to clients that a central microprocessor acts as the real brain of the operation. It dictates the travel speed, senses physical obstacles, and seamlessly maintains operation if the main power grid suddenly fails.
DC Motor Characteristics
- Variable speed control: Electronic modules enable incredibly smooth acceleration and deceleration.
- Integrated battery backup: The gate functions seamlessly during severe tropical thunderstorms.
- Whisper-quiet movement: Gradual speed adjustments prevent violent shaking and metal-on-metal grinding.
- Smart home compatibility: Modern controllers easily integrate with WiFi modules for instant smartphone access.
- Higher initial investment: Complex microprocessors and backup batteries increase the initial purchase price.
Durability Comparison
Gear Wear and Mechanical Stress
This specific mechanical area highlights a massive structural advantage for the DC variants. The programmed soft start prevents the motor from slamming into full maximum torque from a dead stop.
Our maintenance logs clearly show that this gradual acceleration saves the internal carbon steel gears from catastrophic shock. AC motors, by contrast, start at maximum power immediately, which violently jolts the gate track and mounting bearings.
A typical AC motor gear set usually grinds down after 3 to 4 years of daily operation. Conversely, a high-quality DC motor easily pushes past 5 to 7 years before requiring any mechanical overhauls.
Motor Windings and Heat Management
Ambient temperatures in the Klang Valley regularly hover between 35°C and 38°C during the long afternoon hours. AC motor windings suffer from massive inrush currents at startup, generating extreme internal heat spikes.
We notice that this severe thermal stress quickly degrades the internal copper insulation, especially during the dry season. DC motors pull current much more gradually, keeping the internal core temperatures significantly cooler.
Lower operating temperatures directly translate to a much longer lifespan for the sensitive internal wiring.
Control Board Reliability
The microprocessors inside DC units offer incredible functionality but introduce sensitive electronic components to the elements. Lightning strikes are a major threat in Malaysia, as demonstrated during the massive October 2025 storms that knocked out the Edra Melaka Power Plant.
Our technicians highly recommend installing dedicated surge protectors for any electronic autogate setup to avoid costly autogate repair work. Reputable DC control boards now feature built-in thermal management and varistors to safely deflect these dangerous voltage spikes.
Basic AC boards have fewer components to fry, but their direct unbuffered connection to the mains leaves them highly exposed.
System Lifespan Comparison
A clear side-by-side analysis helps quantify the exact differences in component longevity across both formats.
| Component | AC Motor | DC Motor |
|---|---|---|
| Gear set | 3-4 years | 5-7 years |
| Motor windings | 5-7 years | 7-10 years |
| Control board | 5-8 years | 5-8 years |
| Bearings | 3-5 years | 5-7 years |
| Complete system | 5-7 years | 7-10 years |
The Battery Factor
A reliable backup power source is an absolute mandatory safety requirement for homes in Malaysia. Severe weather frequently disrupts the local power grid, trapping vehicles inside residential compounds.
We clearly recall the widespread October 2025 blackouts that left major shopping centres like Mid Valley Megamall completely dark. A standard AC motor simply dies during these grid failures, forcing you to unlock the heavy gate manually in the pouring rain.
DC motors seamlessly draw from their 12V 7Ah backup battery, providing up to 100 open and close cycles without any TNB power.
Managing Battery Costs
The internal sealed battery typically requires a straightforward replacement every 2 to 3 years. A brand new sealed lead-acid unit costs between RM 80 and RM 150 at most hardware suppliers.
Our accounting breaks this down to a running cost of roughly RM 50 per year. That tiny expense guarantees your family can safely enter or exit the property during a serious emergency.
Cost Comparison
Evaluating the total financial impact requires looking far past the initial sticker price. TNB implemented a new domestic electricity tariff in July 2025, setting the base rate at 27.03 sen/kWh for usage under 1500kWh.
We always remind property owners that DC motors run far more efficiently and consume significantly less grid power. The slight bump in energy savings easily helps offset the premium you pay for the advanced electronic controller.
Over a standard five-year period, the lower mechanical maintenance frequency of a DC system balances out the higher upfront cost.
| Item | AC Motor System | DC Motor System |
|---|---|---|
| Motor + installation | RM 1,100 - RM 1,800 | RM 1,600 - RM 2,800 |
| Annual maintenance | RM 150 - RM 200 | RM 150 - RM 200 |
| Gear replacement (once) | RM 200 - RM 350 | RM 200 - RM 350 |
| Battery replacement (DC only) | N/A | RM 80 - RM 150 every 2-3 years |
| 5-year total cost | RM 2,050 - RM 3,150 | RM 2,430 - RM 3,850 |
| Expected lifespan | 5-7 years | 7-10 years |
Dividing the total expenditure by the expected lifespan proves that DC systems offer vastly superior yearly value.
Why DCMoto Is Our Recommended Brand
The Malaysian market offers dozens of options, but certain manufacturers consistently outlast the competition. DCMoto has specifically engineered its DC units, like the highly rated GFM925W, to effectively handle harsh tropical climates.
Our teams have installed thousands of these exact models across the Klang Valley with stellar results. They prioritize heavy-duty mechanical parts over the fragile plastic components found in cheaper alternatives.
Key DCMoto Advantages
- Carbon steel gears: These rugged components completely resist the stripping and wearing common in standard nylon gears.
- Tropical-rated electronics: The sealed control boards withstand Malaysia’s extreme humidity and constant heat.
- Abundant spare parts: Local manufacturing guarantees that replacement sensors or batteries remain widely available.
- Reliable dealer support: A strong national network ensures extremely fast warranty claims and technical assistance.
- Proven performance: These units routinely hit the 10-year lifespan mark with basic annual servicing.
Our Verdict on DC Motor vs AC Motor for Autogates: Which Lasts Longer?
Most residential properties will benefit immensely from investing in a high-quality DC system. The extra RM 500 to RM 1,000 spent upfront buys you whisper-quiet operation, critical battery backup, and significantly less mechanical gear wear.
We strongly advise against installing new AC motors unless you are outfitting a massive commercial sliding gate that demands raw power. The older technology simply cannot compete with modern electronic convenience and essential safety features. Choosing a DC motor secures a much better long-term investment for your property.
Need Help Choosing?
Selecting the exact motor size and brand requires matching the equipment directly to your specific gate weight. A heavy wrought iron swing gate demands entirely different torque specifications than a lightweight aluminium slider.
Our specialists are ready to analyze your property layout and power supply reliability. Feel free to WhatsApp us at 018-298 9389 for a free consultation today.
You can count on us to calculate your specific usage frequency and answer the final question of DC Motor vs AC Motor for Autogates: Which Lasts Longer? for your unique home.
