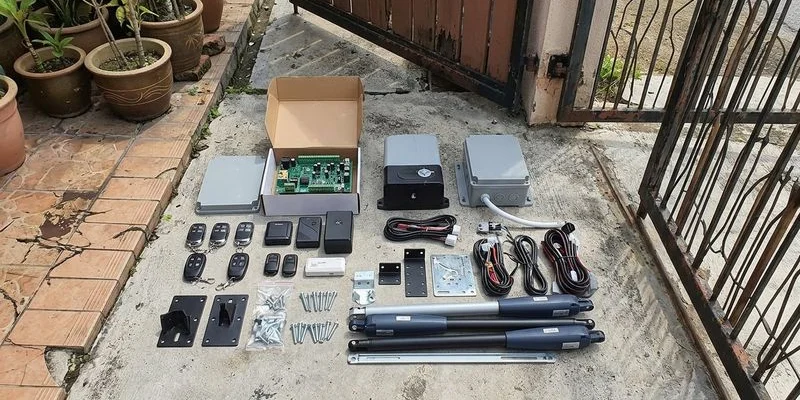

Autogate Spare Parts Guide: Control Panels, Batteries, Remotes & More

We see it happen every week: a homeowner is stuck outside their property because a single component failed without warning.

That helpless feeling of manually pushing a heavy gate in the Malaysian rain is incredibly frustrating.

Our team created this Autogate Spare Parts Guide: Control Panels, Batteries, Remotes & More to help you prevent these exact emergencies. This resource empowers you to understand why a simple RM35 battery can cause a total system shutdown. You will know exactly what to look for when a technician recommends a fix.

We will outline the true lifespans and 2026 replacement costs for every critical piece of hardware. Let’s examine how these parts operate and how you can extend their lifespan.

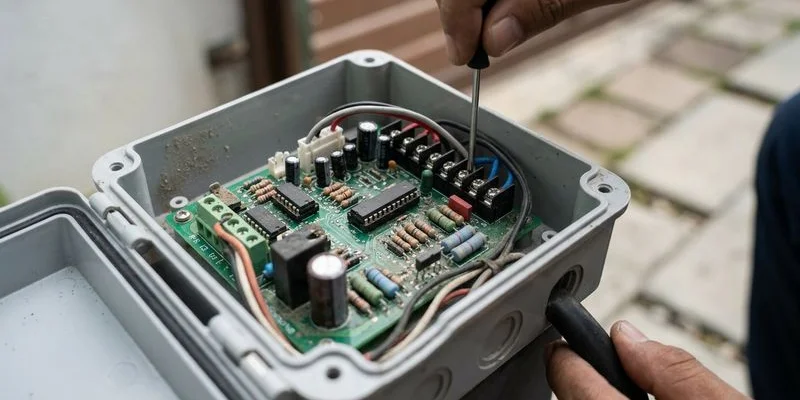

Control Panel (Motherboard)

The control panel serves as the central command centre for your entire automated gate setup. This printed circuit board manages the input from your remote, safety sensors, and limit switches to dictate motor speed and direction.

Our technicians often describe it as the brain of the operation, coordinating features like auto-close delays and obstacle detection.

Core Functions and Features

Pressing your remote sends a signal to the receiver board, which relays the command to the main panel. The motherboard then determines whether to open or close the gate based on real-time sensor data.

We rely on these panels to safely manage the exact timing and force required to move heavy iron gates. Modern boards also handle the soft start and stop functions, preventing the gate from slamming into the pillars.

Lifespan and Weather Risks

A quality control panel typically lasts 5 to 8 years under ideal conditions. Our repair logs show that power surges from lightning strikes remain the number one cause of motherboard failure in Malaysia.

A single nearby strike can send a voltage spike through the mains supply, frying the sensitive microchips instantly. Installing a dedicated lightning isolator is a highly recommended preventive measure.

2026 Market Pricing

Prices vary significantly depending on whether you need a generic or branded replacement. We source reliable generic sliding gate panels, like the S3 or D2 models, for around RM95 to RM110 online.

High-end, brand-specific boards, such as the DCMoto 925 motherboard, typically retail for around RM294 this year. Professional installation and recalibration usually add RM80 to RM150 to the final bill.

Backup Battery (12V 7Ah)

A reliable backup battery ensures your property remains accessible during a blackout. Without this component, you are forced into manual operation the moment the electricity drops.

Continuous Power Supply

Most systems use a 12V 7Ah sealed lead-acid (SLA) battery. We install these batteries to charge continuously while mains power is active.

The battery seamlessly takes over during a power cut, providing enough energy for 20 to 50 open-and-close cycles. The exact cycle count depends entirely on your gate’s weight and the motor’s efficiency.

Lifespan and Degradation Signs

Backup batteries rarely exceed 1 to 3 years of service in hot Malaysian weather. Our maintenance crews frequently see heat-accelerated internal degradation in these lead-acid units.

You can watch out for these clear warning signs of a failing battery:

• The gate moves noticeably slower during a power trip.
• The battery casing appears swollen or bloated.
• The system completely shuts down when the main power is cut.

Standard Replacement Costs

Finding a replacement is straightforward and affordable. We recommend reputable battery brands like GP, OAE, or Dnor.

These units generally cost between RM35 and RM80. Replacing the battery yourself is safe as long as you disconnect the negative terminal first, and reconnect the positive terminal first on the new unit.

Transformer

The transformer is a crucial safety component that steps down your home’s high-voltage electricity. It converts the standard 240V AC mains supply into a manageable 12V, 18V, or 24V output for the delicate electronics.

Voltage Conversion Explained

The control panel and motor cannot safely handle direct wall current. We depend on the transformer to isolate the low-voltage circuitry from the dangerous high-voltage lines.

If this component burns out, the entire gate mechanism will lose power immediately.

Recognising a Failing Unit

Transformers are incredibly resilient and routinely last 8 to 15 years. Failures usually stem from poor ventilation inside the motor housing or moisture ingress.

We advise homeowners to listen for a loud buzzing or humming sound, which is a classic early warning sign of a developing fault. Replacement units cost between RM60 and RM180.

A qualified technician must perform this repair because it involves handling live 240V wires.

Limit Switches

Limit switches act as the endpoint detectors for your automated gate. They signal the motherboard the exact moment the gate reaches the fully open or fully closed position.

Endpoint Detection Mechanics

As the gate slides or swings, a mounted trigger eventually actuates the switch. We configure this signal to kill the motor power instantly.

Without precise limit switches, the motor would continue grinding against the end stoppers, causing severe structural damage.

Mechanical vs Magnetic Options

The industry currently uses two distinct types of limit switches. Our field experience confirms that upgrading your sensor type can drastically reduce maintenance calls.

Here is how the two primary technologies compare:

Feature	Mechanical (Spring) Switch	Magnetic (Reed) Switch
Detection Method	Physical contact with a spring or lever	Contactless magnetic field induction
Average Lifespan	3 to 6 years	5 to 8+ years
Common Problems	Springs bend, rust, or jam over time	Magnets can occasionally vibrate loose
2026 Price Range	RM20 to RM60 per unit	RM50 to RM90 per unit

Remote Control and Receiver

The remote and receiver board operate as a paired communication system. Pressing the button transmits a coded radio frequency that triggers the gate to move.

Understanding 330MHz vs 433MHz

Most Malaysian properties utilise either a 330MHz or 433MHz frequency system. We frequently assist homeowners who accidentally purchased an incompatible replacement remote online.

A 330MHz remote typically uses a fixed dial code system, often featuring an SMC5326 chip with 8 tiny dip switches inside. A 433MHz system might use fixed codes or rolling code technology for enhanced security.

Pairing and Security Features

Duplicating a standard dial code remote is incredibly simple. We instruct customers to simply open the casing and match the up, down, or middle positions of the 8 dip switches to their old remote.

Systems equipped with rolling codes change the required signal after every press, preventing thieves from cloning the frequency. Remotes usually last 3 to 5 years before the internal buttons wear out.

Finding the Right Replacement

Buying a new remote costs between RM25 and RM80, depending on the frequency and build quality. Replacing a burnt-out receiver board ranges from RM80 to RM200.

Our primary tip is to always verify your receiver’s exact frequency printed on the circuit board before ordering spare remotes.

Motor Gears

The internal gears translate the electric motor’s high-speed rotation into slow, high-torque movement. This mechanical reduction provides the sheer pushing power required to move heavy steel barriers.

Material Differences and Lifespans

The material composing the primary gear dictates both its longevity and noise level. We offer different gear materials based on the specific weight of the gate being automated.

This data outlines what you can expect from different replacements:

Gear Material	Estimated Lifespan	Typical Use Case	Estimated Replacement Cost
Nylon/Plastic	3 to 5 years	Lighter sliding gates (e.g., E8 motors)	RM20 to RM40
Copper/Brass	6 to 10 years	Medium residential swing gates	RM80 to RM150
Carbon Steel	8+ years	Heavy commercial or solid iron gates	RM120 to RM250

Wear and Tear Indicators

The sheer weight of the gate acts as a constant stressor on the gear teeth. We find that a loud grinding noise during operation is the clearest indicator of stripped nylon teeth.

Labour costs for this repair generally run between RM100 and RM200, as the technician must fully dismantle the motor housing.

Rollers and Wheels

A sliding autogate installation relies entirely on bottom-mounted rollers to bear the gate’s weight. These wheels glide along a floor track, enabling smooth, low-friction lateral movement.

Friction Reduction and Movement

The roller sits securely inside a U-groove or V-groove track profile. We install heavy-duty steel wheels with sealed bearings to minimize strain on the driving motor.

If the wheels seize, the motor must work twice as hard, often leading to premature electronic failure.

Recognising Worn Wheels

Quality stainless steel wheels last approximately 5 to 8 years. Dust and trapped moisture will eventually penetrate the bearings and cause them to rust solid.

We advise property managers to watch for scraping noises or a noticeable wobble as the gate travels. Individual wheels cost RM10 to RM40 each.

Replacing them requires lifting the entire heavy frame off its track, a job best left to professionals.

Rubber Stoppers

Rubber stoppers act as shock absorbers for the moving panels. They cushion the final impact right as the gate meets the holding pillar.

Essential Impact Absorption

Even perfectly calibrated sensors leave a small amount of residual forward momentum. We fit these dense rubber blocks to absorb that kinetic energy safely.

This simple cushioning protects the expensive motor gears from harsh, sudden jolts.

Maintenance and Replacement

Constant exposure to harsh sunlight causes the rubber to harden and crack over 2 to 4 years. Our service teams consider these items routine consumables during an annual checkup.

A loud metallic banging at the end of the opening cycle means the stopper has failed entirely. Replacements cost a mere RM5 to RM15 each, making them the most affordable maintenance item on the property.

When to Call Autogate Experts for Parts Replacement

Modern gate automation involves a mix of heavy mechanical forces and live electrical currents. Some tasks, like swapping a 12V backup battery, are completely safe for a confident DIYer.

Our team strongly recommends leaving motherboard diagnostics, 240V transformer replacements, and gear housing rebuilds to trained autogate repair professionals.

Professional diagnostics save you money by pinpointing the exact point of failure immediately. We stock all the common D1, D2, and S3 control panels directly on our service vehicles.

This level of preparation allows a technician to fix a fried circuit in a single afternoon. Our transparent pricing ensures you never pay for a completely new motor when a simple RM30 limit switch is the real culprit.

Check your gate for grinding noises, slow movement, or inconsistent remote signals this week. Bookmark this Autogate Spare Parts Guide: Control Panels, Batteries, Remotes & More for future reference.
