Autogate Remote Not Working? A Troubleshooting Guide

We frequently see property managers across the Klang Valley assuming the worst when their automated gates stop responding. If you are asking yourself, “Autogate Remote Not Working? A Troubleshooting Guide”, you have found the right resource.

Few things are more frustrating than being stuck outside your own home while pressing a dead remote repeatedly. A full system replacement is rarely necessary.

Our professional service team has spent years diagnosing these exact faults, from simple battery drains to complex lightning damage. Whether you use a DCMoto, FBM, OAE, or KRON system from a sliding autogate installation or swing arm setup, the repair principles remain largely the same. Let’s walk through the exact steps needed to get your gate moving again.

Step 1: Check the Remote Battery

We always check the power source before touching any electrical components. The most common reason an autogate remote stops working is a dead or weak battery. Most residential models use a small 23A 12V alkaline battery or a CR2032 coin cell, depending on the brand.

Our technicians find that the hot Malaysian weather significantly shortens standard battery lifespans. These power cells typically last between 12 to 18 months with normal use. Replacing them is incredibly cheap, usually costing between RM3 to RM15 on platforms like Shopee or Lazada.

Battery Type	Common Autogate Brands	Average Cost (RM)
23A 12V Alkaline	DCMoto, Older OAE models	RM3 - RM8
CR2032 Coin Cell	FBM, Modern KRON systems	RM5 - RM15

We highly recommend sticking to branded replacements like Energizer or Panasonic for better reliability. To check the status, open the compartment on the back of your device. Look for any signs of corrosion or acid leakage.

Our team resolves about 60% of all service calls simply by inserting a fresh cell. Make sure the polarity (positive and negative ends) is correctly oriented. Try pressing the button again to see if the gate responds.

Step 2: Inspect the Receiver Antenna

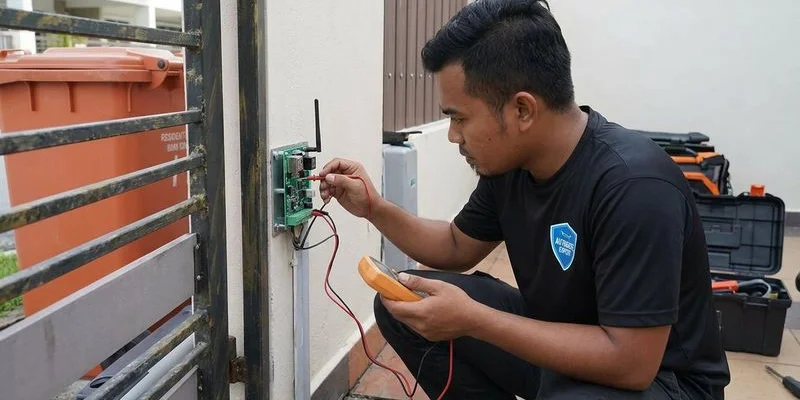

We often discover that physical damage to the receiver equipment is the real culprit behind poor signal distance. Your motor unit has a small receiver board equipped with an antenna wire. This component is usually a thin piece of wire sticking out from the housing or control panel box.

Our maintenance calls frequently reveal antennas chewed by rodents or pushed inside the casing during cleaning. A misaligned receiver drastically reduces the effective range of your clicker. Open the motor cover and locate the terminal, which is usually marked with an “ANT” flag on the circuit board.

• 330MHz Systems: Require an antenna length of approximately 22cm.
• 433MHz Systems: Need a slightly shorter length of about 17cm.
• External Upgrades: Installing a professional-grade external antenna can push your range beyond 100 meters.

We advise replacing the wire using a standard RG174 coaxial cable if the original is completely broken. The replacement wire should extend outward and be positioned vertically for the best signal capture. Soldering a new piece is a quick fix if you have the right tools.

Step 3: Rule Out Frequency Interference

We constantly battle signal overlap in densely populated neighbourhoods. Autogate remotes in Malaysia typically operate on either 330MHz or 433MHz frequencies. The 433MHz band is especially crowded and easily disrupted by nearby electronics broadcasting on similar channels.

Our team frequently traces range issues to newly installed Wi-Fi 6 mesh routers placed too close to the front door. Other common offenders include LED lighting drivers and high-definition CCTV camera systems. If your remote suddenly stopped working after new equipment was installed nearby, interference is a highly likely cause.

Pro-Tip from the Field: Try standing directly beside the motor unit and pressing the button. If it works perfectly at close range but fails from your car, local frequency interference is artificially capping your effective range.

We suggest moving heavy electronic devices at least three meters away from the motor housing. This single adjustment clears up the noise and allows the receiver to register the correct command. Try changing the broadcast channel on your router if physical relocation is impossible.

Step 4: Reprogramming the Remote

We reprogram clickers daily after local power grid fluctuations. Sometimes the handheld unit loses its pairing with the main receiver board. This synchronisation loss often happens after a power outage, a lightning strike, or when the backup battery runs completely dry.

Our standard procedure is to re-establish this connection manually. The exact programming sequence depends heavily on your specific manufacturer. Let us look at the methods for the most popular systems in the country.

For DCMoto Systems

We find the DCMoto setup very user-friendly for homeowners. The pairing process relies on a dedicated learning circuit found on popular models like the GFM925W.

1. Locate the “Learn” button on the receiver board inside the motor housing.
2. Press and hold the Learn button until the LED indicator blinks.
3. Within 10 seconds, press the button on your remote that you want to programme.
4. The LED should flash to confirm successful pairing.
5. Test the device by pressing it again to open or close the gate.

For FBM Systems

Our technicians usually look for a specific button combination for FBM models. The control panel layout differs slightly from the DCMoto configuration.

1. Find the programming button on the control panel (usually labelled “SET” or “CODE”).
2. Press and hold for 3 seconds until you see an LED response.
3. Press your desired remote button within 5 seconds.
4. The system will beep or flash to confirm the code has been stored.

For KRON and SMC5326 Chip Systems

We handle many KRON-929 models that use a manual hardware matching system rather than a digital pairing button. These remotes often house an SMC5326 chip inside.

• Open the casing of your old, working remote.
• Locate the 8-pin DIP switch block (a row of tiny numbered switches).
• Open your new remote and match the exact up/down pattern of the switches.
• Test the unit immediately, as no control panel interaction is required.

Our team notes that if reprogramming fails after several attempts, the receiver board itself may have failed. This represents a more serious hardware fault requiring component replacement.

Step 5: Check the Control Panel and Power Supply

We always verify the main electrical feed when reprogramming fails. If none of the basic steps fix the problem, the issue may bypass the handheld unit entirely. Check whether the motor responds when you press the indoor manual push button on the wall.

Our next diagnostic step involves testing the main step-down transformer. This heavy component typically converts a 230V or 240V incoming AC supply down to a 12V-9V-0V-9V-12V output. A failed transformer means the entire control board lacks the power needed to receive any signals.

We use a digital multimeter, like a Fluke or UNI-T, to verify the exact output voltage across the terminals. Replacing a burnt-out transformer in Malaysia usually costs between RM80 to RM130, not including labour. If the manual push button also fails, you are definitely looking at a primary power failure rather than a remote control issue.

When to Replace the Receiver Board

We replace dozens of fried circuits during the monsoon season. Kuala Lumpur officially has one of the highest rates of lightning strikes in Asia. An October 2025 storm famously knocked out power across the Klang Valley, proving exactly how vulnerable local electronics are to sudden surges.

Our records show that lightning-induced power spikes account for nearly 90% of total board failures. Moisture ingress into the housing and general age are secondary culprits. If you have confirmed the battery is good, the antenna is intact, and reprogramming fails, the receiver board is likely dead.

Failure Cause	Common Symptoms	Estimated Replacement Cost (RM)
Lightning Surge	Visible scorch marks, completely dead system	RM150 - RM200
Moisture Ingress	Intermittent response, erratic gate movement	RM80 - RM120
Component Age	Failing to hold programming codes	RM80 - RM100

We always advise checking the frequency rating before buying a replacement part online. Mixing a 330MHz remote with a 433MHz receiver will never work, regardless of how many times you attempt to pair them. Getting the exact matching board is critical for a successful repair.

Autogate Remote Not Working? A Troubleshooting Guide for Professional Repairs

We highly recommend leaving complex electrical work to trained technicians. Replacing a dead coin cell or tweaking an antenna wire is perfectly safe for a homeowner to handle. Dealing with 240V transformer wiring requires proper safety gear and certification.

Our technicians carry replacement parts for all major brands and resolve most faults in a single visit. Urgent cases across Selangor and Kuala Lumpur qualify for our same-day service dispatch. If you are still searching for answers to “Autogate Remote Not Working? A Troubleshooting Guide”, it is time to get expert help.

We guarantee fast, reliable autogate repair services that get your security back on track. Do not let a faulty receiver leave you stranded in the rain. Contact Autogate Expert today for a professional consultation and immediate assistance.
