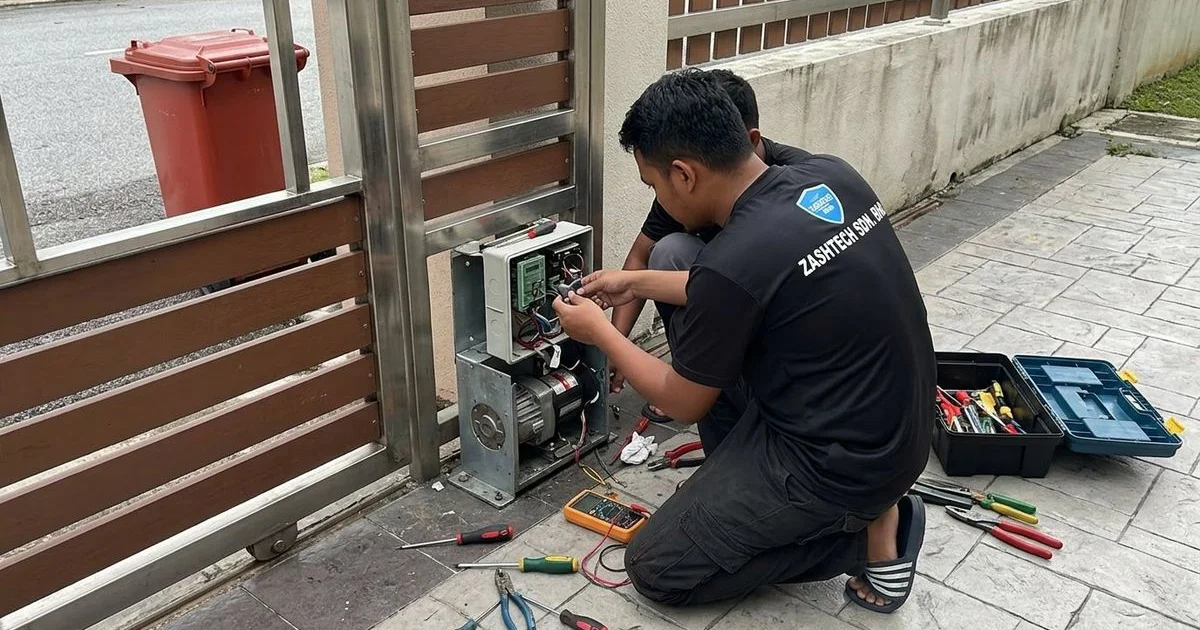

5 Signs Your Autogate Needs Repair Before It Breaks Down Completely

Most mechanical breakdowns do not happen overnight. The 5 signs your autogate needs repair before it breaks down completely usually build up over weeks or months. Catching these early warnings can save you from a massive emergency replacement bill and the frustration of a gate stuck open in the rain.

Our team sees this pattern constantly across the Klang Valley. Property managers often ignore minor motor struggles until the system fails entirely.

Let’s examine the data, see what the parts are actually telling you, and walk through exactly how to respond.

Sign 1: Unusual Grinding or Scraping Noises

We often find that a healthy autogate motor, like a well-maintained Dnor or OAE system, produces a smooth, low hum. Grinding, scraping, clicking, or high-pitched whining means something is mechanically failing.

What is Causing It

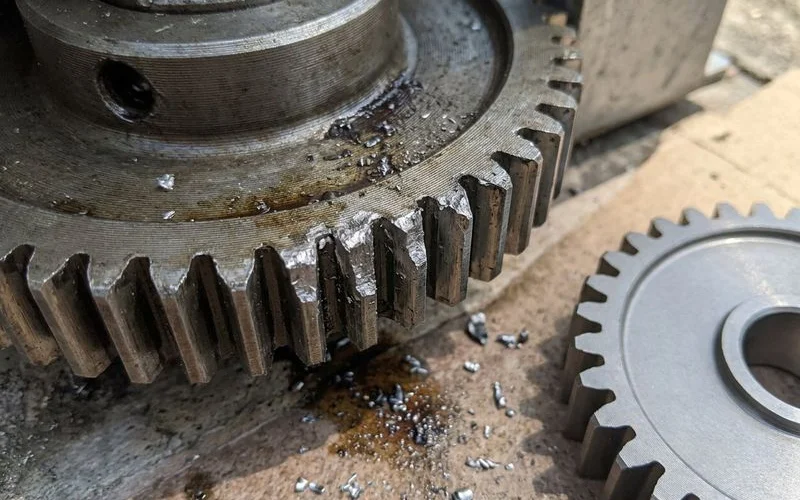

• Worn gear teeth: The rack-and-pinion gears are meshing poorly, causing a harsh grinding sound.
• Dry bearings: A lack of lubrication causes damaging metal-on-metal friction.
• Misaligned track: For sliding autogate systems, a bent or shifted track causes the entire gate to scrape.
• Loose motor bracket: The motor vibrates violently against its mounting, creating rattling sounds.
• Foreign objects: Soil and sediment buildup from recent Klang Valley rainstorms block the track or gear mechanism.

What Happens If You Ignore It

Our technicians frequently replace gear teeth that have been damaged beyond repair by unchecked friction. Left unattended, this degrades the whole system and burns out the motor windings entirely. A simple lubrication or adjustment costing RM 80 to RM 150 through professional autogate repair could prevent a full motor replacement bill of RM 800 to RM 1,500.

Sign 2: Gate Moving Slower Than Usual

We consider slowdown to be one of the most reliable early indicators of impending failure. A standard swing gate should take about 8 to 10 seconds to open fully. If yours now takes 15 to 20 seconds, the motor is struggling to carry the load.

What is Causing It

• Motor losing power: Worn brushes in DC motors drastically reduce motor efficiency.
• Increased friction: Dirty tracks, worn rollers, or corroded hinges add heavy resistance.
• Weak battery: In DC systems, a deteriorating lead-acid battery cannot supply full voltage.
• Controller issues: The speed regulation circuit on the main board degrades over time.
• Gate weight increase: Rust buildup, added decorations, or a thick new coat of paint can add significant weight.

What Happens If You Ignore It

Our repair logs show that struggling motors draw significantly more current to compensate for the increased resistance. Repeated overheating degrades the motor windings and the main control board components. What starts as a slow gate becomes a gate that stops mid-travel, and eventually a motor that will not start at all.

Sign 3: Gate Stopping or Reversing Mid-Travel

We know that obstacle detection systems act as your gate’s essential safety net. If your gate opens halfway and then stops or reverses direction without hitting an object, the sensor is malfunctioning or the motor is failing to complete the travel. Malaysia’s heavy humidity often fogs up these photoelectric sensors, causing false triggers.

What is Causing It

• Obstacle sensor misalignment: Photoelectric sensors are dirty, fogged up, or physically shifted.
• Motor overload: The built-in protection circuit triggers because the system is drawing too much current.
• Limit switch problems: The physical switches that tell the motor when to stop are out of position.
• Track obstruction: A small but persistent obstruction like a raised tile or shifted track section triggers the safety reverse.
• Controller malfunction: The main control board is sending incorrect stop signals.

What Happens If You Ignore It

Our clients often feel exposed when a gate stops mid-travel because it presents a major security risk. It is also a severe safety hazard if the gate reverses unexpectedly while someone is nearby. The underlying motor strain will escalate to a complete breakdown, usually during heavy rain when you need it most.

An unpredictable autogate is a serious safety hazard for children and pets in the driveway.

Sign 4: Intermittent Remote Response

We always tell clients to check the remote battery first when the communication system starts failing. You might press the remote and find the gate responds only on the third try, or works perfectly one day and ignores you the next. Frequency interference or receiver degradation is usually the real culprit.

What is Causing It

• Weak remote battery: This is the simplest and most common cause.
• Receiver module degradation: The receiver’s sensitivity decreases over time, especially after lightning exposure.
• Frequency interference: The standard 330MHz and 433MHz signals in Malaysia can face interference from new nearby electronics.
• Antenna damage: The receiver antenna wire may be physically damaged or disconnected.
• Control board issues: The receiver circuit on the main board itself may be failing.

What Happens If You Ignore It

Our daily service calls prove that intermittent remotes eventually stop working entirely. Standard 12V lead-acid batteries inside these receiver boxes generally need replacing every 3 to 5 years. If the receiver module has failed completely, you will need a replacement board costing RM 150 to RM 300. Lightning strikes can damage the main control board, which increases the repair cost to RM 250 to RM 500.

Sign 5: Visible Physical Damage or Deterioration

We highly recommend regular visual inspections to catch problems before they require expensive electrical work. Sometimes the warning signs are clearly visible rather than audible. The tropical climate in Malaysia causes severe wear and tear on unprotected metal and electrical housings.

What to Look For

• Rust on the motor housing: Water ingress is corroding delicate internal components.

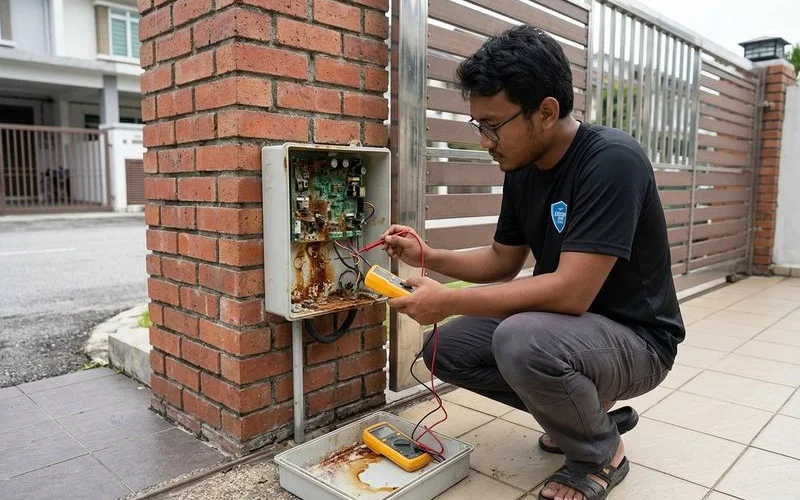

• Cracked control box: Weather exposure is damaging the sensitive electronics inside.
• Leaning pillars: The foundation is shifting, putting immense physical stress on the motor arm.
• Frayed or exposed wiring: This presents a severe electrical hazard and potential short circuit.
• Gate sagging: Hinges or rollers are worn, adding dangerous strain to the motor.
• Loose bolts or brackets: Constant daily vibration has loosened the motor mounting.

What Happens If You Ignore It

Our team frequently deals with flooded circuit boards that started as a tiny, ignored crack in the control box. Physical deterioration accelerates exponentially during the heavy monsoon season. Exposed wiring can short-circuit, potentially damaging the control board, motor, and even your home’s main electrical panel.

What to Do When You Notice These Signs

We strongly advise taking immediate action when you spot any of these issues. Early intervention keeps your property secure and your repair costs low. Basic troubleshooting can resolve many minor faults.

1. Do not ignore them: Early intervention is always cheaper than emergency repair.
2. Check the simple things first: Replace remote batteries, clear debris from the track, and tighten visible loose bolts.
3. Call a professional: If the problem persists after basic checks, it needs professional diagnosis.
4. Request a full inspection: When a technician comes for one issue, ask them to check the entire system.

How Much Does Early Repair Save?

Our pricing data across Malaysia shows homeowners the real financial value of routine maintenance. Addressing problems early saves 50 to 70 percent on average compared to waiting for a complete breakdown.

Problem	Early Repair Cost	Breakdown Repair Cost
Gear lubrication	RM 80 to RM 150	RM 200 to RM 350 (gear replacement)
Bearing replacement	RM 100 to RM 200	RM 800 to RM 1,500 (motor replacement)
Limit switch adjustment	RM 80 to RM 120	RM 250 to RM 400 (board and switch)
Receiver repair	RM 100 to RM 200	RM 250 to RM 500 (board replacement)
Track alignment	RM 150 to RM 250	RM 400 to RM 600 (track and gear)

Get Your Autogate Checked

We provide thorough, transparent diagnostics for any property in the region. If you have noticed any of these 5 signs your autogate needs repair before it breaks down completely, do not wait. Early-stage repairs are fast, simple, and keep your property secure.

You can easily WhatsApp us at 018-298 9389 to schedule a diagnostic visit. Our technicians will identify the issue, explain your options, and provide a clear repair quotation. Most basic repairs can be completed on the exact same day.
